Using ssh tunneling to gain access to remote VirtualBox guest attached to NAT

I’m building virtual machines on a weekly basis, sometimes daily. Most often I create various Linux distros as guests on VirtualBox hosts. VirtualBox hosts are either Windows or Linux computers. Majority of guests are built for test purposes only, so they often live in a “cage” behind a VirtualBox NAT. Guests with NIC attached to NAT have access to the LAN and Internet, but the opposite is not possible out of the box. So my typical NIC configuration for VirtualBox guest looks like this:

Fortunately, VirtualBox allows to configure port forwarding for NAT attached NIC’s. For every Linux guest I setup port forwarding for ssh (22), so that I can use MobaXterm (on Windows7/10) to connect to the Linux guest from the host itself. That’s how it looks:

That’s fine, as long as you have access to the host where your VBox guest is running, you can use MobaXterm to connect to the virtualbox guest. Seating at Windows 7 workstation we simply open MobaXterm and type:

Sometimes, I build virtual machines that I want to access from other machines as well and I don’t like to weaken security by attaching guest NIC’s to a Bridged adapter. Again, let’s call wonderful ssh to the rescue.

Situation: VirtualBox host is a Windows 2008 R2 Server (I’ll refer to this host as VBOXHOST). On this host we’re hosting Linux guest (OL7ORA12R2) with the latest Oracle 12.2 installation. Guest is behind a NAT, but with a port forwarding setup for ssh as shown above (picture 3). I would like to have access to this guest from remote workstation running Windows 7. All machines (physical Windows 7 & 2008R2, plus virtual Linux 7) are firewalled with ssh ports (22) left opened. On Windows 2008R2 is already running OpenSSH (Cygwin).

All that we need to do to get sqlplus access to remote Oracle 12.2 running in Linux guest from Windows 7 workstation is this:

On Windows 7 we start MobaXTerm terminal and run (note that by default Mobaxterm uses implicitly -X for ssh):
$ ssh -L 12201:localhost:12201 alesk@vboxhost -t ssh -L 12201:localhost:1521 alesk@localhost -p 2222

First, we're asked for password to connect to vbohost (Windows 2008 R2), then we're asked for password to login to virtual machine guest (Linux).

Note, that we must left the MobaXterm window open for a duration of SQL*Plus session that follows...

Now, we can connect from Windows 7 Workstation to the remote Oracle DB,  first open cmd and type:
cmd> sqlplus /nolog
cmd> connect c##alesk@'localhost:12201/ORA122'

What happens is illustrated on this picture:

  1. On Windows 7 we launched MobaXterm and run ssh command:
  2. $ ssh -L 12201:localhost:12201 alesk@vboxhost -t ssh -L 12201:localhost:1521 alesk@localhost -p 2222

    ssh -L 12201:localhost:12201 alesk@vboxhost  ........... tunnel #1 forwarding port 12201 (Windows 7) to port VBOXHOST (port 12201), in both cases on localhost.
    ssh -L 12201:localhost:1521 alesk@localhost -p 2222 .... tunnel #2 forwarding port 12201 (VBOXHOST) to port 1521 inside VirtualBox Guest, using port 2222 redirection done by VirtualBox itself.

  3. On Windows 7 we opened sqlplus, connecting to localhost:12201. SSH redirected traffic to VBOXHOST:12201 (hop 1), followed by second redirection (hop 2) to Listener running inside VirtualBox.

What if we would like to run some GUI application on Linux guest? We can use X session forwarding, allowing us to see the GUI on our Windows 7 workstation. Like this:

We must open two MobaXterm terminals on Windows 7 workstation.

In the first MobaXterm terminal we type:

$ ssh -L 2222:localhost:2222 alesk@vboxhost

In the second MobaXterm terminal we type:

$ ssh alesk_guest@localhost -p 2222
alesk_guest@mint18 ~$ xclock &

….and xclock will popup on Windows 7 workstation but actually running on Linux guest. Note that alesk_guest is a Linux user on LinuxMint 18 guest and that guest is configured in the same way as before, behind a NAT and with ssh port forwarding (2222) at VirtualBox level. This option is handy to lauch Oracle gui configuration tools, like dbca, netca etc.

Installing Windows 8.1 as VirtualBox Guest (Error 0x000000C4)

A short reminder to myself of what to do to prepare VirtualBox guest VM for Windows 8.1 (or Windows Server 2012 R2) installation:

Determine VM name dedicated to Windows 8.1 installation:

cmd> "c:\Program Files\Oracle\VirtualBox\VBoxManage.exe" list vms

"WIndows8-64" {2962e10b-2168-4d0c-b4b0-b9b104b66661}

Turn on CMPXCHG16B CPU property for VM:
"c:\Program Files\Oracle\VirtualBox\VBoxManage.exe" setextradata "WIndows8-64" VBoxInternal/CPUM/CMPXCHG16B 1

Ubuntu Unity on VirtualBox 4.1

Today, I was pleased to see VirtualBox 4.1 release announcement on OTN. New features sounded encouraging, especially the support for Linux Unity and GNOME 3 desktops. So, I decided to give it a try with installation of Ubuntu 11.04 x64 guest. I tried installing guest from ISO image several times and was always blocked at time zone selection. Installer simply hanged.
Google returned numerous reported incidents, I tried out several workarounds, unsuccessfully, until I found someone who said that the only thing that worked for him was when he removed NIC from virtual machine. Bingo! After I completely removed NIC from VM guest machine I was able to finish Ubuntu 11.04 installation (make sure you check 3D support for video!). Then I installed VirtualBox guest additions as usual, then I made a shutdown. I added NIC back to VM guest and I was able to boot and login with Unity interface. I hope this note will spare someone troubleshooting Ubuntu 11.04 installation on VirtualBox 4.1.

VirtualBox replacement for VMWare Server 2.0.2

As you might know, end of general support for VMWare Server 2.0 is in front of us; I knew for the best part of the year 2010 that I’ll have to replace VMWare Server with some equivalent (or better) hosting virtualization product. Finally, I decided to replace VMWare Server with VirtualBox. More or less because the VirtualBox is under vivid development, with frequent and stable releases and as of today, there is not a sign from Oracle that VirtualBox could end like a VMWare server. What I’ll miss the most is VMWare Server web admin console – I know some folks hated the web interface (Remote Console), I for one, found it outstanding. It’s pity that VMWare put an end to this product line.
Anyway, I found some articles on the web describing how to migrate from VMWare to VirtualBox. I managed to migrate Oracle Enterprise Linux VM’s following instructions from Karl Arao’s blog. For Windows VM’s I decided to do a clean install instead of tweaking Windows OS and repairing installation.
If time permits I’ll post my own screenshots that I took while migrating Oracle Ent. Linux 5.5 from VMWare Server to VirtualBox.

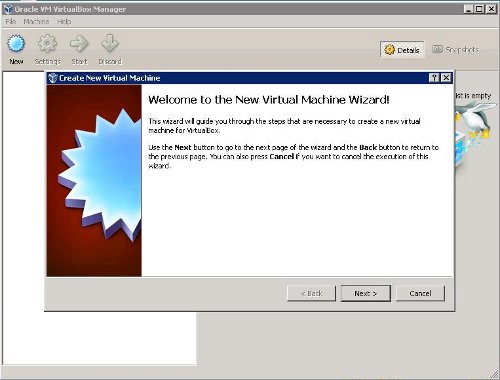

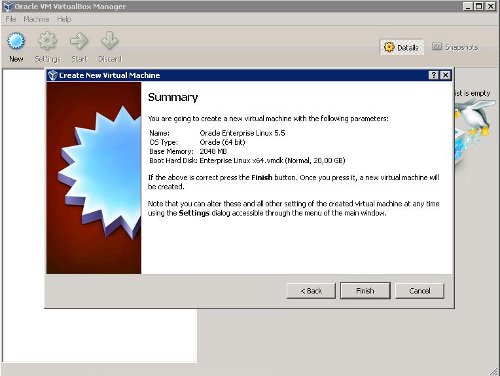

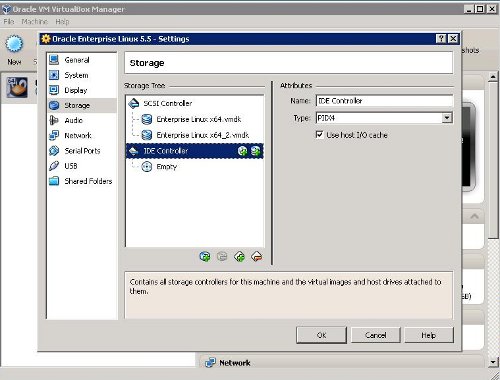

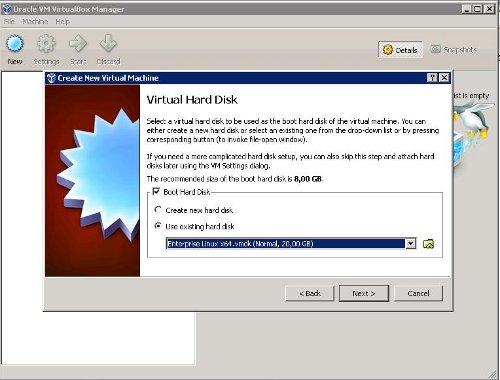

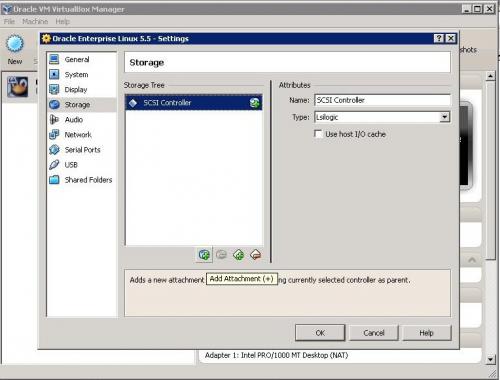

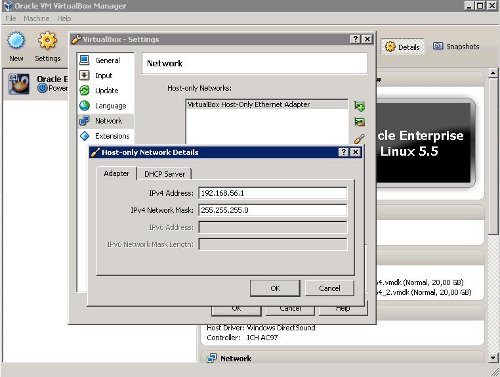

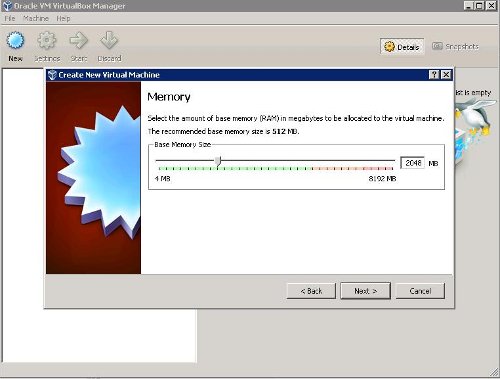

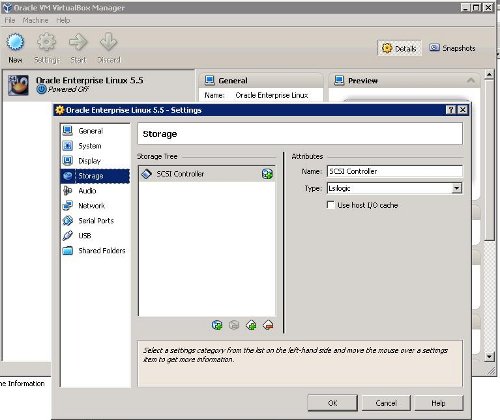

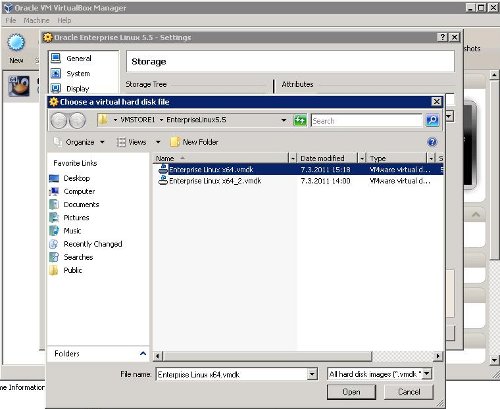

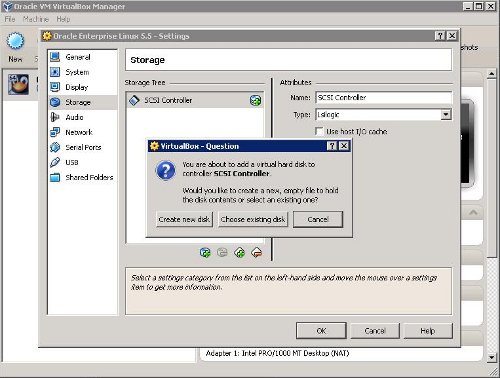

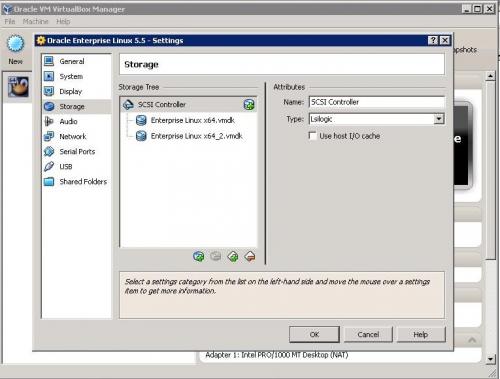

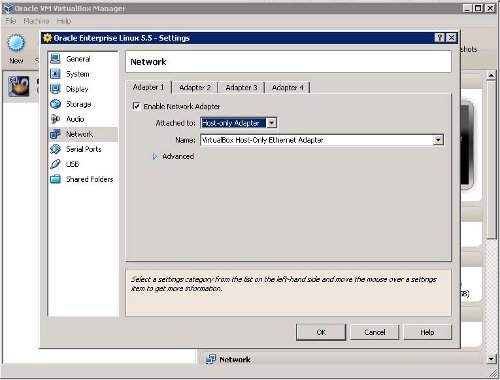

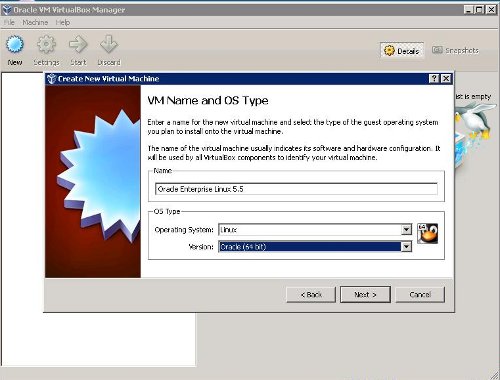

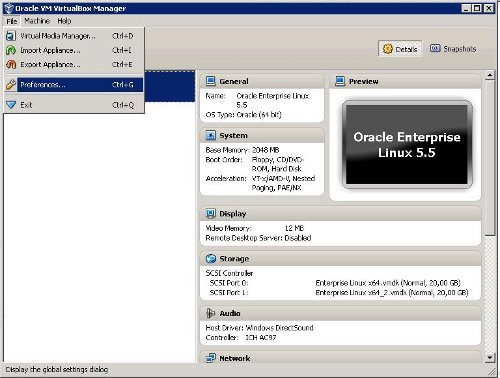

Create new VirtualBox VM that you’ll use to start VM from VMWare Server VMDK files:
