Using ssh tunneling to gain access to remote VirtualBox guest attached to NAT

I’m building virtual machines on a weekly basis, sometimes daily. Most often I create various Linux distros as guests on VirtualBox hosts. VirtualBox hosts are either Windows or Linux computers. Majority of guests are built for test purposes only, so they often live in a “cage” behind a VirtualBox NAT. Guests with NIC attached to NAT have access to the LAN and Internet, but the opposite is not possible out of the box. So my typical NIC configuration for VirtualBox guest looks like this:

Fortunately, VirtualBox allows to configure port forwarding for NAT attached NIC’s. For every Linux guest I setup port forwarding for ssh (22), so that I can use MobaXterm (on Windows7/10) to connect to the Linux guest from the host itself. That’s how it looks:

That’s fine, as long as you have access to the host where your VBox guest is running, you can use MobaXterm to connect to the virtualbox guest. Seating at Windows 7 workstation we simply open MobaXterm and type:

Sometimes, I build virtual machines that I want to access from other machines as well and I don’t like to weaken security by attaching guest NIC’s to a Bridged adapter. Again, let’s call wonderful ssh to the rescue.

Situation: VirtualBox host is a Windows 2008 R2 Server (I’ll refer to this host as VBOXHOST). On this host we’re hosting Linux guest (OL7ORA12R2) with the latest Oracle 12.2 installation. Guest is behind a NAT, but with a port forwarding setup for ssh as shown above (picture 3). I would like to have access to this guest from remote workstation running Windows 7. All machines (physical Windows 7 & 2008R2, plus virtual Linux 7) are firewalled with ssh ports (22) left opened. On Windows 2008R2 is already running OpenSSH (Cygwin).

All that we need to do to get sqlplus access to remote Oracle 12.2 running in Linux guest from Windows 7 workstation is this:

On Windows 7 we start MobaXTerm terminal and run (note that by default Mobaxterm uses implicitly -X for ssh):
$ ssh -L 12201:localhost:12201 alesk@vboxhost -t ssh -L 12201:localhost:1521 alesk@localhost -p 2222

First, we're asked for password to connect to vbohost (Windows 2008 R2), then we're asked for password to login to virtual machine guest (Linux).

Note, that we must left the MobaXterm window open for a duration of SQL*Plus session that follows...

Now, we can connect from Windows 7 Workstation to the remote Oracle DB,  first open cmd and type:
cmd> sqlplus /nolog
cmd> connect c##alesk@'localhost:12201/ORA122'

What happens is illustrated on this picture:

  1. On Windows 7 we launched MobaXterm and run ssh command:
  2. $ ssh -L 12201:localhost:12201 alesk@vboxhost -t ssh -L 12201:localhost:1521 alesk@localhost -p 2222

    ssh -L 12201:localhost:12201 alesk@vboxhost  ........... tunnel #1 forwarding port 12201 (Windows 7) to port VBOXHOST (port 12201), in both cases on localhost.
    ssh -L 12201:localhost:1521 alesk@localhost -p 2222 .... tunnel #2 forwarding port 12201 (VBOXHOST) to port 1521 inside VirtualBox Guest, using port 2222 redirection done by VirtualBox itself.

  3. On Windows 7 we opened sqlplus, connecting to localhost:12201. SSH redirected traffic to VBOXHOST:12201 (hop 1), followed by second redirection (hop 2) to Listener running inside VirtualBox.

What if we would like to run some GUI application on Linux guest? We can use X session forwarding, allowing us to see the GUI on our Windows 7 workstation. Like this:

We must open two MobaXterm terminals on Windows 7 workstation.

In the first MobaXterm terminal we type:

$ ssh -L 2222:localhost:2222 alesk@vboxhost

In the second MobaXterm terminal we type:

$ ssh alesk_guest@localhost -p 2222
alesk_guest@mint18 ~$ xclock &

….and xclock will popup on Windows 7 workstation but actually running on Linux guest. Note that alesk_guest is a Linux user on LinuxMint 18 guest and that guest is configured in the same way as before, behind a NAT and with ssh port forwarding (2222) at VirtualBox level. This option is handy to lauch Oracle gui configuration tools, like dbca, netca etc.

Setup OpenSSH (Cygwin) for public key authentication

It took me awhile to realize that my SSHD installation on my Windows 2012R2 was not ready yet to accept public key authentication, which is a key feature. If we want to automate some tasks we need passwordless authentication to our Windows 2012 R2 server.

By default sshd is running under Local System account and this is in conflict with implementation of public key authentication of OpenSSH in Cygwin. If you recollect from my last post, special account was created, called cyg_server:

*** Info: On Windows Server 2003, Windows Vista, and above, the
*** Info: SYSTEM account cannot setuid to other users -- a capability
*** Info: sshd requires.  You need to have or to create a privileged
*** Info: account.  This script will help you do so.

*** Info: It's not possible to use the LocalSystem account for services
*** Info: that can change the user id without an explicit password
*** Info: (such as passwordless logins [e.g. public key authentication]
*** Info: via sshd) when having to create the user token from scratch.
*** Info: For more information on this requirement, see
*** Info: https://cygwin.com/cygwin-ug-net/ntsec.html#ntsec-nopasswd1

*** Info: If you want to enable that functionality, it's required to create
*** Info: a new account with special privileges (unless such an account
*** Info: already exists). This account is then used to run these special
*** Info: servers.

*** Info: Note that creating a new user requires that the current account
*** Info: have Administrator privileges itself.

*** Info: No privileged account could be found.

*** Info: This script plans to use 'cyg_server'.
*** Info: 'cyg_server' will only be used by registered services.
*** Query: Do you want to use a different name? (yes/no) no
*** Query: Create new privileged user account 'ACMEHOST\cyg_server' (Cygwin name: 'cyg_server')? (yes/no) yes

*** Info: Please enter a password for new user cyg_server.  Please be sure
*** Info: that this password matches the password rules given on your system.
*** Info: Entering no password will exit the configuration.
*** Query: Please enter the password: mysecret
*** Query: Reenter:

*** Info: User 'cyg_server' has been created with password 'mysecret'.

The important info is this:

*** Info: It’s not possible to use the LocalSystem account for services
*** Info: that can change the user id without an explicit password
*** Info: (such as passwordless logins [e.g. public key authentication]
*** Info: via sshd) when having to create the user token from scratch.

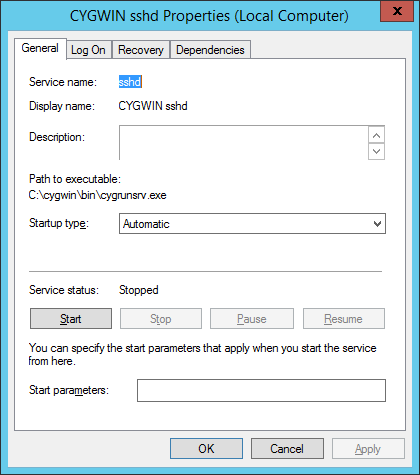

So, the first thing that we need to do is to stop “CYGWIN sshd” service and change logon account for the sshd service as shown on the following screenshots:

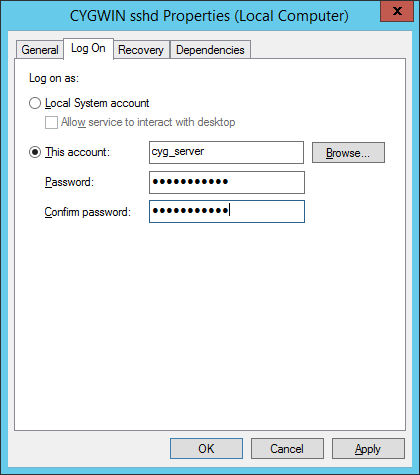

Cygwin-13

Cygwin-14

At this point you can not start the service yet, if you try you’ll find in /var/log/sshd.log the following error:

/var/empty must be owned by root and not group or world-writable.

What we need to do is to change owner of the directory /var/empty from SYSTEM to cyg_server. Open cygwin.bat and run:

// check current permissions

$ ls -al /var/empty

total 0
drwx------+ 1 SYSTEM ACMEHOST+None 0 Mar  6 12:10 .
drwxr-xr-x+ 1 alesk ACMEHOST+None 0 Mar  6 12:10 ..

or with:

$ getfacl /var/empty

# file: /var/empty
# owner: SYSTEM
# group: ACMEHOST+None
user::rwx
group::---
other:---
default:user::rwx
default:group::r-x
default:other:r-x

// So I tried to change the owner to cyg_server:

$ chown cyg_server /var/empty
invalid user cyg_server

// What? At first I didn't know why is cyg_server invalid, but then
// I realized that I added only one (my) account in /etc/passwd, so I
// need to append cyg_server user as well:

$ mkpasswd -l -u cyg_server >> /etc/passwd

// restared cygwin.bat shell and run

$ chown ACMEHOST+cyg_server /var/empty

Remember that by default username is prefixed by hostname.

// if you ever wish to change back to Local System account,
// all that is needed is to again change Service account
// under which CYGWIN sshd is running and owner of /var/empty:

$ chown SYSTEM /var/empty

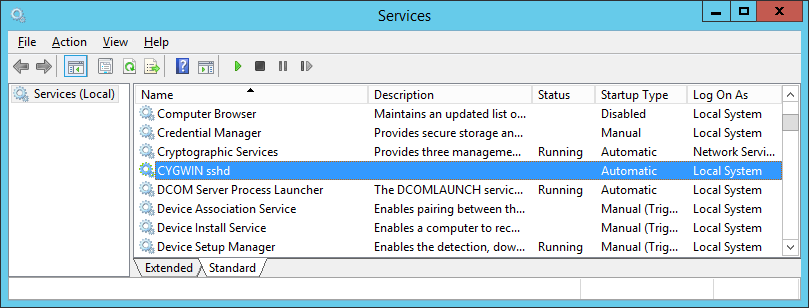

At this point you should be able to start “CYGWIN sshd” service under local cyg_server account. The last thing you need to do is to test the connection with public key authentication. I used Mobaxterm for that on my workstation ACMEWKS, but you could as easily use Cygwin SSH on your workstation:

In MobaXterm window:

We need to generate some public-private keys. Note that in our case we need PK keys for passwordless authentication, so we didn't password protect rsa private key in the example that follows.

[alesk.ACMEWKS] ? ssh-keygen -t rsa

Generating public/private rsa key pair.
Enter file in which to save the key (/home/mobaxterm/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/mobaxterm/.ssh/id_rsa.
Your public key has been saved in /home/mobaxterm/.ssh/id_rsa.pub.
The key fingerprint is:
9a:da:35:e8:ca:6a:14:e4:f0:8c:10:1c:21:41:fe:81 alesk@ACMEWKS
The key's randomart image is:
+--[ RSA 2048]----+
|**o              |
|=.o              |
|.E .             |
|. * .            |
|   o    S        |
|  .    +         |
| .    + o        |
|  .. + . .       |
| ...+.o          |
+-----------------+

Remember, that /home/mobxterm/.ssh is volatile, after you close the MobaXterm this directory is gone, so you should copy public/private keys to some local, permanent directory....

[alesk.ACMEWKS] ? ls -al /home/mobaxterm/.ssh
total 5
drwx------    1 alesk   UsersGrp         0 Mar  5 15:46 .
drwx------    1 alesk   UsersGrp         0 Mar  5 11:09 ..
-rw-------    1 alesk   UsersGrp      1675 Mar  5 15:46 id_rsa
-rw-r--r--    1 alesk   UsersGrp       396 Mar  5 15:46 id_rsa.pub
-rw-r--r--    1 alesk   UsersGrp       171 Mar  5 09:11 known_hosts

[alesk.ACMEWKS] ? mkdir /cygdrive/g/ssh
[alesk.ACMEWKS] ? cp /home/mobaxterm/.ssh/id_rsa* /cygdrive/g/ssh

// copy public key to remote host
[alesk.ACMEWKS] ? scp /cygdrive/g/ssh/id_rsa.pub alesk@ACMEHOST:~/.ssh

// append previoulsy copied public key to authorized_keys on remote host
$ ssh alesk@ACMEHOST  'cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys'

Now, we can try to connect from ACKMEWKS to ACMEHOST with PK authentication:

[alesk.ACMEWKS] ssh -i /cygdrive/g/ssh/id_rsa alesk@ACMEHOST

You should be logged on ACMEHOST without prompt for a password. Properly protect private key. Better yet, you should limit what someone can execute execute via passwordless ssh connection with the help of prefix in authorized_keys file for each public key (see this for an example).

And finally, you can troubleshoot ssh connection by turning on verbose mode (-v, -vvv), for example:

[alesk.ACMEWKS] ssh -vvv -i /cygdrive/g/ssh/id_rsa alesk@ACMEHOST

Installing OpenSSH (Cygwin 1.7.35) on Windows 2012 R2

Whenever I need some Cygwin functionality on my Windows hosts, I always prefer pre-packaged solutions (Mobaxterm for ssh client on Windows, CopSSH for SSHD, etc.). This time around I needed a free SSH server for Windows 2012R2 host without the limits imposed by recent CopSSH free version. I decided that I’ll try to use SSHD from cygwin.com directly, something that I tried to avoid in the last decade.

1) INSTALLATION


First you’ll need to download installer from cygwin.com, save the file in some temporary directory. I downloaded 64-bit version because I’ll be installing 64-bit packages. More precisely, I selected the following packages and their dependencies: nano, zip, unzip, OpenSSH, openssl and rlwrap.

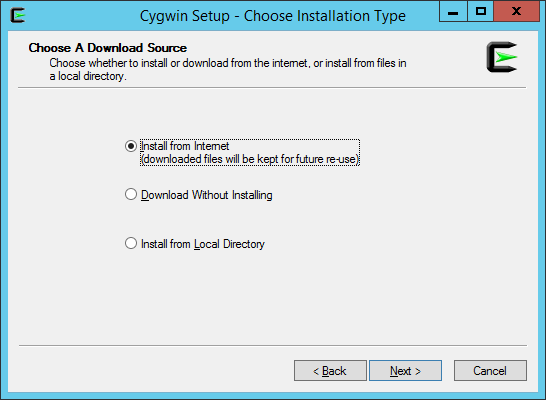

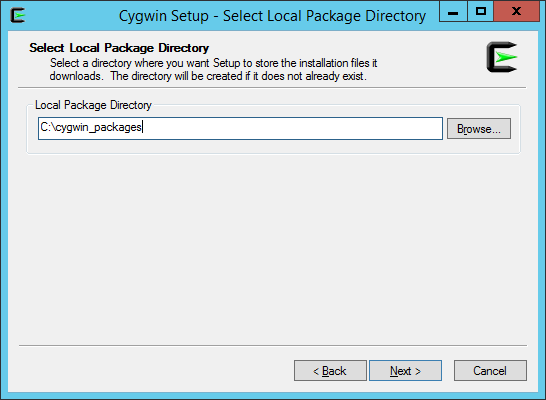

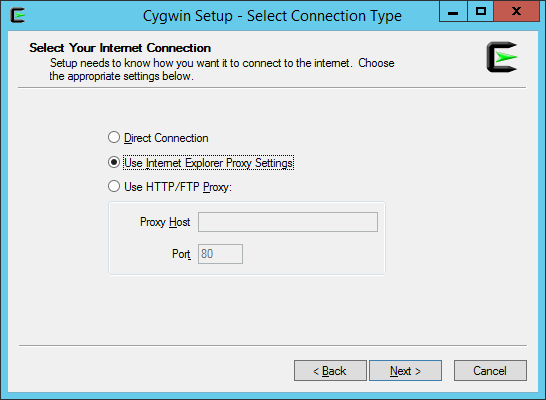

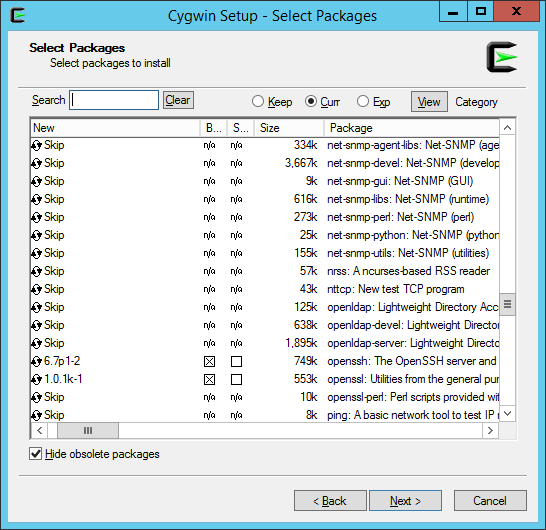

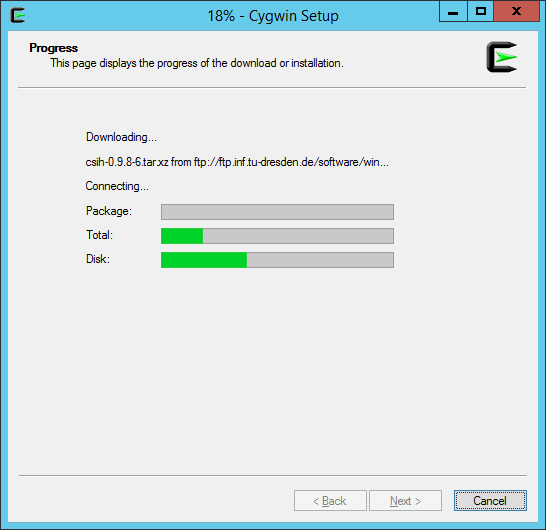

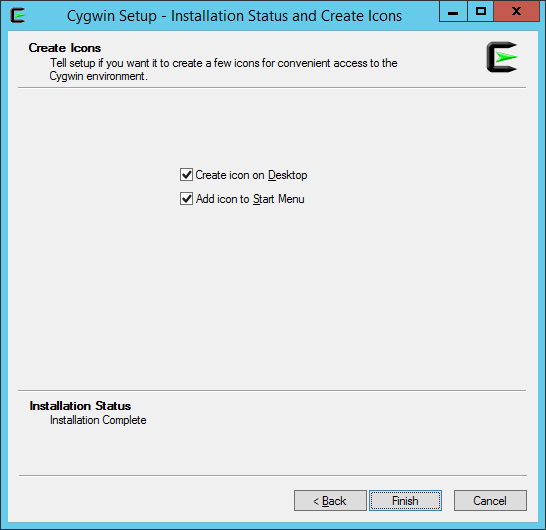

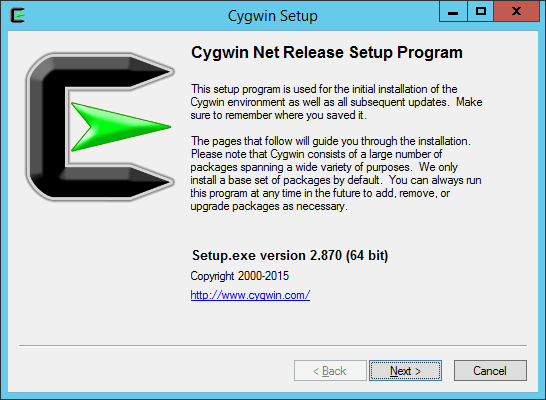

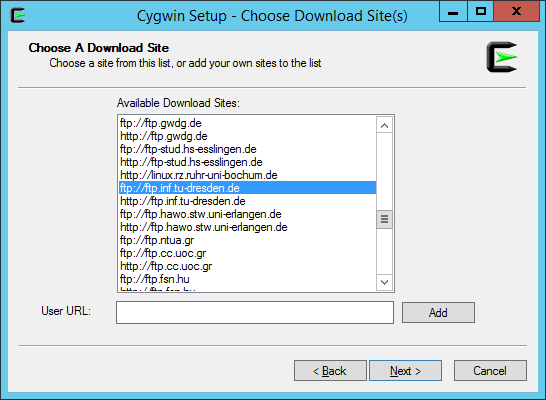

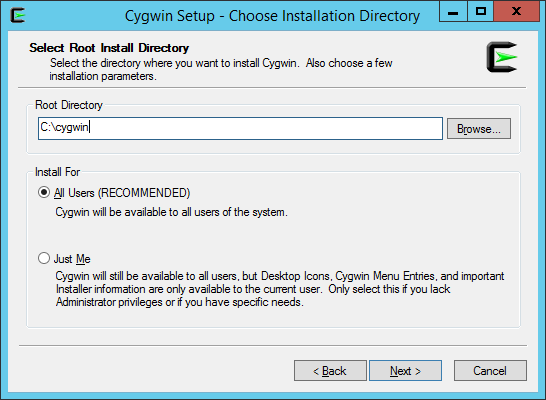

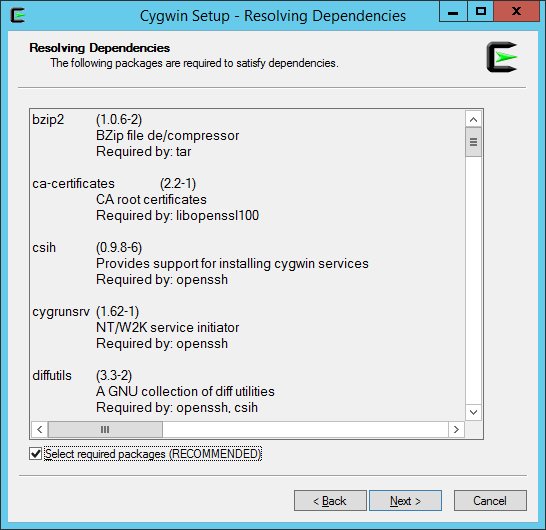

Run the installer and follow the wizard, here are screenshots from my host:

Cygwin-01

Cygwin-02

Cygwin-03

Cygwin-04

Cygwin-05

Cygwin-06

Cygwin-07

Cygwin-08

Cygwin-09

Cygwin-10

2) CONFIGURATION

2.1 Should we edit cygwin.bat?
You’ll probably find numerous recommendation on the net (and even in Oracle documentation — “Enterprise Manager Cloud Control Basic Installation Guide”) that first thing you should do is to open cygwin.bat and insert line set CYGWIN=binmode ntsec, so that bat would look like:

notepad c:\cygwin\cygwin.bat

@echo off

C:ssh
chdir C:\cygwin\bin
set CYGWIN=binmode ntsec      << INSERTED LINE
bash --login -i

Both parameters are obsolete in cygwin 1.7, so I believe we can safely skip this step and leave cygwin.bat in original state.

2.2 Test installation
Open C:\cygwin\cygwin.bat and run:

$ cygrunsrv -h

and you should see help for cygwrunsrv, otherwise something went wrong and you’ll likely have to re-install.

2.3 Configure SSHD service by opening cygwin.bat with “Run as Administrator” privilege:

$ ssh-host-config
*** Info: Generating missing SSH host keys
ssh-keygen: generating new host keys: RSA1 RSA DSA ECDSA ED25519
*** Info: Creating default /etc/ssh_config file
*** Info: Creating default /etc/sshd_config file

*** Info: StrictModes is set to 'yes' by default.
*** Info: This is the recommended setting, but it requires that the POSIX
*** Info: permissions of the user's home directory, the user's .ssh
*** Info: directory, and the user's ssh key files are tight so that
*** Info: only the user has write permissions.
*** Info: On the other hand, StrictModes don't work well with default
*** Info: Windows permissions of a home directory mounted with the
*** Info: 'noacl' option, and they don't work at all if the home
*** Info: directory is on a FAT or FAT32 partition.
*** Query: Should StrictModes be used? (yes/no)  yes

*** Info: Privilege separation is set to 'sandbox' by default since
*** Info: OpenSSH 6.1.  This is unsupported by Cygwin and has to be set
*** Info: to 'yes' or 'no'.
*** Info: However, using privilege separation requires a non-privileged account
*** Info: called 'sshd'.
*** Info: For more info on privilege separation read /usr/share/doc/openssh/README.privsep.
*** Query: Should privilege separation be used? (yes/no) yes

*** Info: Note that creating a new user requires that the current account have
*** Info: Administrator privileges.  Should this script attempt to create a
*** Query: new local account 'sshd'? (yes/no) yes

*** Info: Updating /etc/sshd_config file

*** Query: Do you want to install sshd as a service?
*** Query: (Say "no" if it is already installed as a service) (yes/no) yes
*** Query: Enter the value of CYGWIN for the daemon: [] binmode ntsec

*** Info: On Windows Server 2003, Windows Vista, and above, the
*** Info: SYSTEM account cannot setuid to other users -- a capability
*** Info: sshd requires.  You need to have or to create a privileged
*** Info: account.  This script will help you do so.

*** Info: It's not possible to use the LocalSystem account for services
*** Info: that can change the user id without an explicit password
*** Info: (such as passwordless logins [e.g. public key authentication]
*** Info: via sshd) when having to create the user token from scratch.
*** Info: For more information on this requirement, see
*** Info: https://cygwin.com/cygwin-ug-net/ntsec.html#ntsec-nopasswd1

*** Info: If you want to enable that functionality, it's required to create
*** Info: a new account with special privileges (unless such an account
*** Info: already exists). This account is then used to run these special
*** Info: servers.

*** Info: Note that creating a new user requires that the current account
*** Info: have Administrator privileges itself.

*** Info: No privileged account could be found.

*** Info: This script plans to use 'cyg_server'.
*** Info: 'cyg_server' will only be used by registered services.
*** Query: Do you want to use a different name? (yes/no) no
*** Query: Create new privileged user account 'ACMEHOST\cyg_server' (Cygwin name: 'cyg_server')? (yes/no) yes

*** Info: Please enter a password for new user cyg_server.  Please be sure
*** Info: that this password matches the password rules given on your system.
*** Info: Entering no password will exit the configuration.
*** Query: Please enter the password: mysecret
*** Query: Reenter:

*** Info: User 'cyg_server' has been created with password 'mysecret'.
*** Info: If you change the password, please remember also to change the
*** Info: password for the installed services which use (or will soon use)
*** Info: the 'cyg_server' account.

*** Warning: Expected privileged user 'cyg_server' does not exist.
*** Warning: Defaulting to 'SYSTEM'

*** Info: The sshd service has been installed under the LocalSystem
*** Info: account (also known as SYSTEM). To start the service now, call
*** Info: `net start sshd' or `cygrunsrv -S sshd'.  Otherwise, it
*** Info: will start automatically after the next reboot.

*** Info: Host configuration finished. Have fun!

Note the line 33:

*** Query: Enter the value of CYGWIN for the daemon: [] binmode ntsec

Here you should enter any env. variables for cygwin daemon if any. I did NOT set those two variables, they’re here only as a note point. According to cygwin documentation, both parameters are obsolete since Cygwin 1.7, I believe the only reason both parameter are still listed, even in Oracle current documentation, is that someone found some old “how-to” on the net (which was valid before 1.7 release) and took it as granted.

After configuration you should check services, you should see CYGWIN sshd….

Cygwin-11

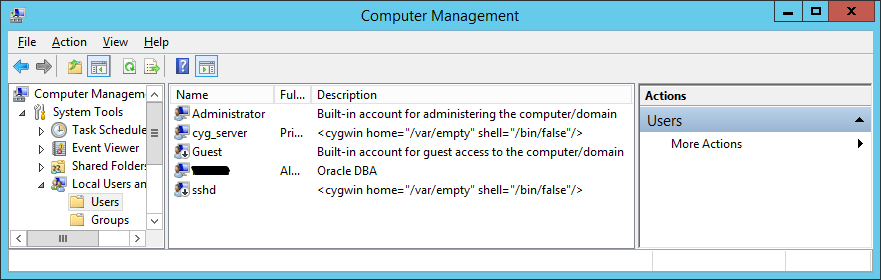

and two new local accounts, cyg_server and sshd…

Cygwin-12

2.4) Enable existing local user account to connect to SSH daemon

// take a backup if by any chance you already have a passwd file (not the case for fresh installation!)

copy C:\cygwin\etc\passwd C:\cygwin\etc\passwd.bak

Open cygwin.bat:

$ /bin/mkpasswd -l -u alesk >> /etc/passwd

The above command will write something like this in the passwd file:

ACMEHOST+alesk:*:197610:197121:U-ACMEHOST\alesk,S-1-5-21-1611771360-925472152-3555864332-1002:/home/alesk:/bin/bash

It means that you can connect to ACMEHOST from some remote workstation with:

$ ssh ACMEHOST+alesk@ACMEHOST

Not cool. I prefer using, simple:

$ ssh alesk@acmehost

so, I changed the username in /etc/passwd to:

alesk:*:197610:197121:U-ACMEHOST\alesk,S-1-5-21-1611771360-925472152-3555864332-1002:/home/alesk:/bin/bash

And for a domain account you would execute:

$ /bin/mkpasswd -d -u alesk >> /etc/passwd
$ mkdir -p /home/alesk
$ chown alesk /home/alesk

2.5) Edit ssh config file:

notepad C:\cygwin\etc\sshd_config

or within cygwin.bat:

nano /etc/sshd_config

at the end of file add:

KexAlgorithms diffie-hellman-group-exchange-sha1,diffie-hellman-group1-sha1

I’m not sure what is the true reasoning for that, but probably for hardening the sshd security!?

2.6 Start SSH daemon:

Cygwin.bat

$ /usr/bin/sshd

or

$ cyrunsrv -S sshd

or start Windows service

Open cmd.exe with “Run as admninistrator”:

cmd> net stop "CYGWIN sshd"

cmd> net start "CYGWIN sshd"

If service doesn’t start check the log at C:\cygwin\var\log\sshd.log.

If you need to add some package afterwards, simply re-run setup.exe installer and check additional packages that you want to install.
